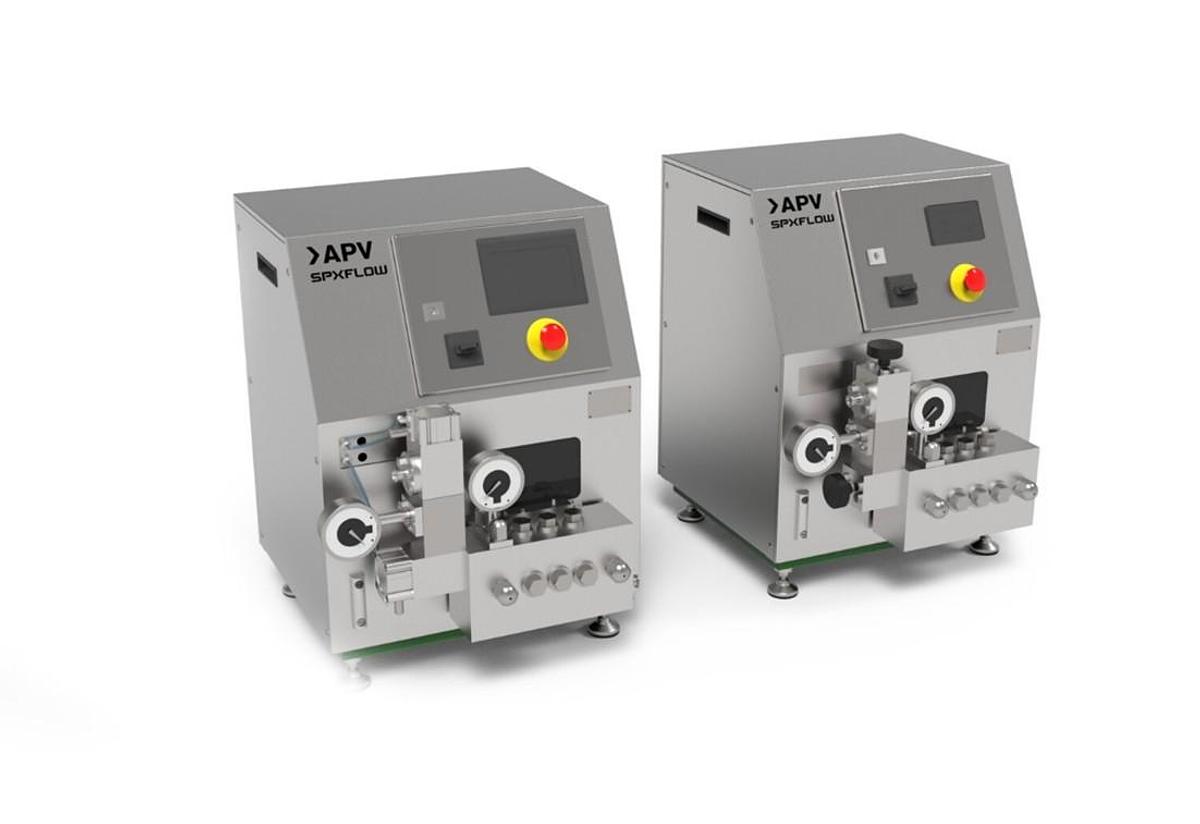

NEW - 2025 APV Pilot 4T Homogenizer

The Pilot 4T is offered NEW from APV / SPXFLOW. This size range fills a gap in the Gaulin line that our selection of used/rebuilt machines often cannot fill affordably. Therefore, this nicely-priced new machine may be a strong consideration even for traditional 'used equipment' buyers.

Factory Description:

SPXFLOW, through the APV brand, carries on the tradition of excellence in the Homogenizer and High Pressure pump ranges built on a long history of application expertise and product innovation.

DUTY SPECIFICATIONS for standard 'milk' pressure rating -- other duty points also available upon request:

Min Capacity: 25 GPH +/- 5%

Max Capacity: 150 GPH +/- 5%

Total Pressure: 3000 PSI (5800 and 8700 PSI models also available)

First Stage Pressure: approx 2500 PSI

Second Stage Pressure: up to 500 PSI

Viscosity: up to 200 cP

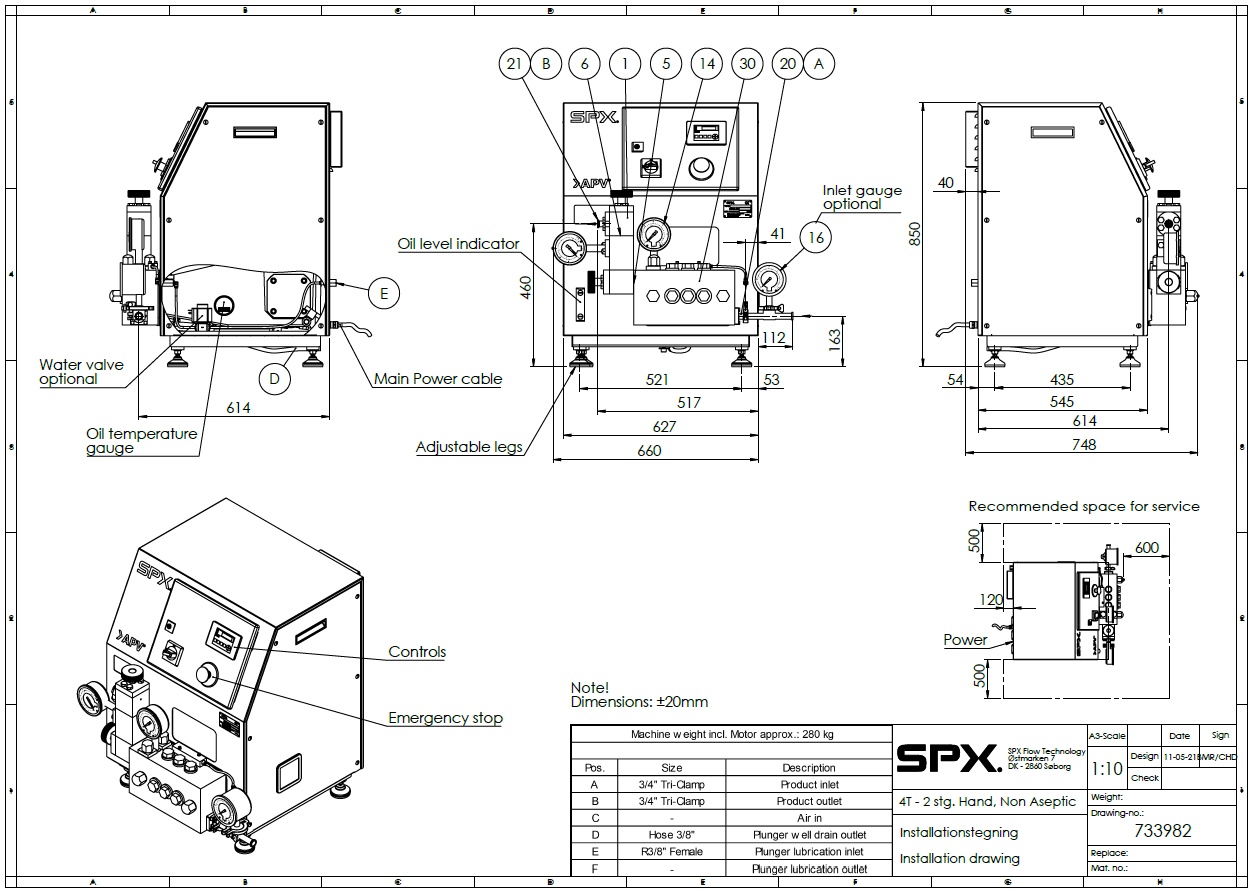

MACHINE SPECIFICATIONS:

Model: Pilot 4T

Inlet Configuration: Single Inlet

Connection Sizes-Inlet / Outlet: 3/4" / 3/4"

Connection Type - Inlet/Outlet: Tri-Clamp ISO 2852 / Tri-Clamp ISO 2852

Model Capacity: 25-150 GPH

Required Feed Pressure: approx 40 PSI

ELECTRICAL/CONTROLS:

Control: Manual (Fully Automatic Actuators also available)

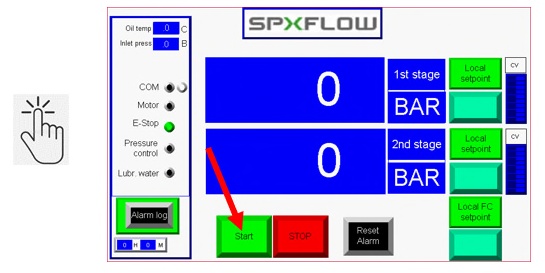

Control Interface: Handwheel (Touchscreen control also available)

Oil Temperature Indicator: Yes

Control Voltage: 24VDC

Control Cabinet: Integrated

Motor Starter Cabinet: Built-in Variable Speed Drive (no external starting equipment needed)
